RN73 C 2A 100K B TDF
Common Part
RN73 - High
precision resistors
(RoHS compliant)
Temp. Coefficient
A - ±5ppm/°C
* C - ±10ppm/°C
Package Size
1E - 0402
* 1J - 0603
* 2A - 0805
2B - 1206
2E - 1210
2H - 2010
3A - 2512
* Preferred stock item* Preferred stock item
Resistor Value
100R
(100 ohms)
1K0
(1000 ohms)
100K
(100,000 ohms)
Tolerance
A - ±0.05%
*B - ±0.1%
L - ±0.01%
Packaging
TG - 250 Cut tape
length (1E, 1J, 2A, 2B)
TDF -1000 REEL
(1E, 1J, 2A, 2B)
TD - 5000 REEL
(1E, 1J, 2A, 2B, 2E)
TDG - 250 REEL
(1E, 1J, 2A only)
TE - 4000 REEL
(2H, 3A only)
How to Order
Paper Tape Specification
Type A B W E F P
0
P
1
P
2
øD
0
T
RN73 1E (0402) 0.70 ±0.05 1.16 ±0.05 8.00 ±0.10 1.75 ±0.05 3.5 ±0.05 4.00 ±0.10 2.00 ±0.05 2.00 ±0.05 1.55 ±0.05 0.40 ±0.03
RN73 1J (0603) 1.10 ±0.05 1.90 ±0.05 8.00 ±0.10 1.75 ±0.05 3.5 ±0.05 4.00 ±0.10 4.00 ±0.10 2.00 ±0.05 1.55 ±0.05 0.60 ±0.03
RN73 2A (0805) 1.60 ±0.05 2.37 ±0.05 8.00 ±0.10 1.75 ±0.05 3.5 ±0.05 4.00 ±0.10 4.00 ±0.10 2.00 ±0.05 1.55 ±0.05 0.75 ±0.05
RN73 2B (1206) 2.00 ±0.05 3.55 ±0.05 8.00 ±0.10 1.75 ±0.05 3.5 ±0.05 4.00 ±0.10 4.00 ±0.10 2.00 ±0.05 1.55 ±0.05 0.75 ±0.05
RN73 2E (1210) 2.75 ±0.05 3.40 ±0.05 8.00 ±0.10 1.75 ±0.05 3.5 ±0.05 4.00 ±0.05 4.00 ±0.10 2.00 ±0.05 1.60 ±0.10 0.75 ±0.05

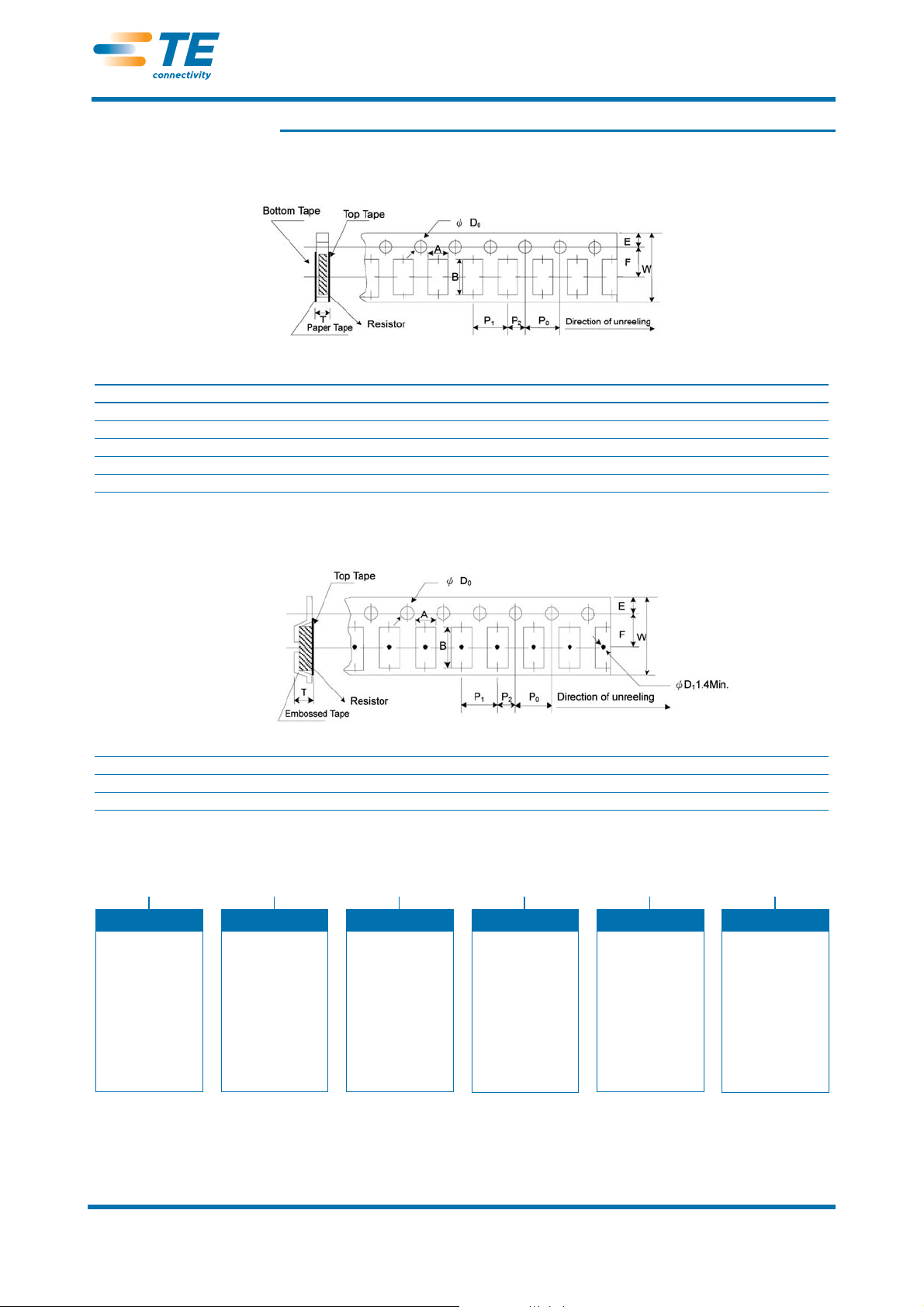

Embossed Plastic Tape Specifications
Type A B W E F P
0
P
1
P
2
øD
0
T
RN73 2H (2010) 2.85 ±0.10 5.45 ±0.10 12.0 ±0.10 1.75 ±0.10 5.5 ±0.05 4.00 ±0.05 4.00 ±0.10 2.00 ±0.05 1.50 +0.10 1.00 ±0.20
RN73 3A (2512) 3.40 ±0.10 6.65 ±0.10 12.0 ±0.10 1.75 ±0.10 5.5 ±0.05 4.00 ±0.05 4.00 ±0.10 2.00 ±0.05 1.50 +0.10 1.00 ±0.20
* Preferred stock item
SMD High Power Precision Resistors
Type RN73 Series
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
