Copyright © 2013-2016 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
, XLamp
®
and EasyWhite
®
are registered trademarks and the Cree logo is a
trademark of Cree, Inc. ENERGY STAR
®
is a registered trademark of the U.S. Environmental Protection Agency. Other trademarks, product, and company names are the property of their respective owners and
do not imply specic product and/or vendor endorsement, sponsorship or association. For product specications, please see the data sheets available at www.cree.com. For warranty information, please
contact Cree Sales at sales@cree.com.
6
XLAMP
®
CXA1512 LED RETAIL TRACK LIGHT REFERENCE DESIGN
not only dissipate the heat generated by the LED, but also provide the mechanical frame for the LED and optic. We used a market-ready
track light kit, shown in Figure 2, that includes an anodized aluminum alloy heat sink, track adaptor, cover glass and front optic cover ring.

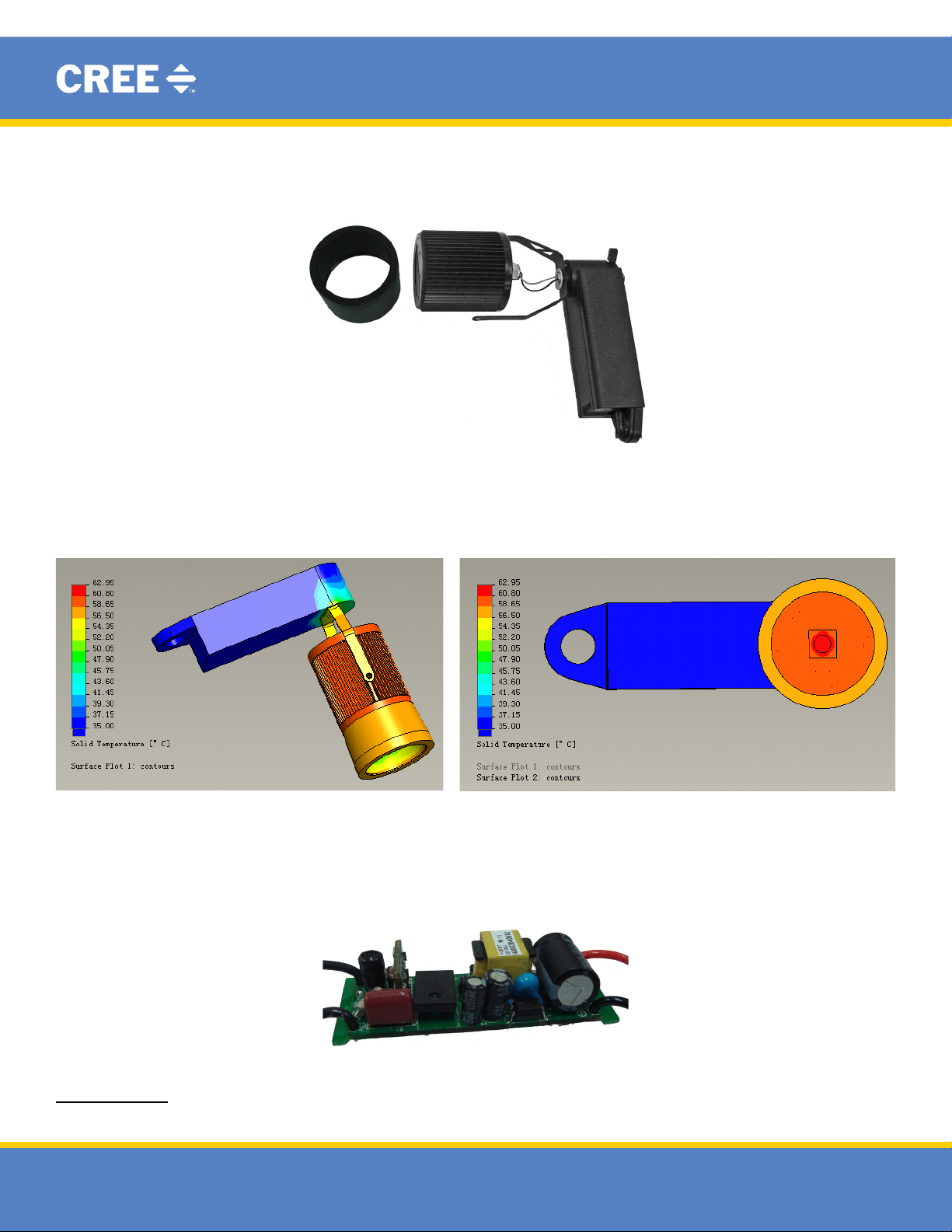

Figure 2: CXA1512 retail track light kit
We performed thermal simulation to verify that this thermal design is sufcient.
5
Figure 3 shows thermal images of the retail track light.
The simulated peak solder point temperature (T
SP
) is 63°C, or 38°C above ambient.
Figure 3: CXA1512 retail track light thermal simulation
Drive Electronics
Cree selected a constant-current driver to supply power to the retail track light. The driver, shown in Figure 4, is not mounted to the heat
sink assembly but instead is housed inside the track adaptor that connects the track light to the track.
Figure 4: CXA1512 retail track light driver
5 For additional information on thermal management, refer to the Thermal Management Application Note
7
散
热器热模拟分析：
图 7 热模拟温度分布图
7
散
热器热模拟分析：
图 7 热模拟温度分布图
