DK-LM3S-DRV8312 BASEBOARD
HARDWARE REFERENCE GUIDE
Rev. 1.0

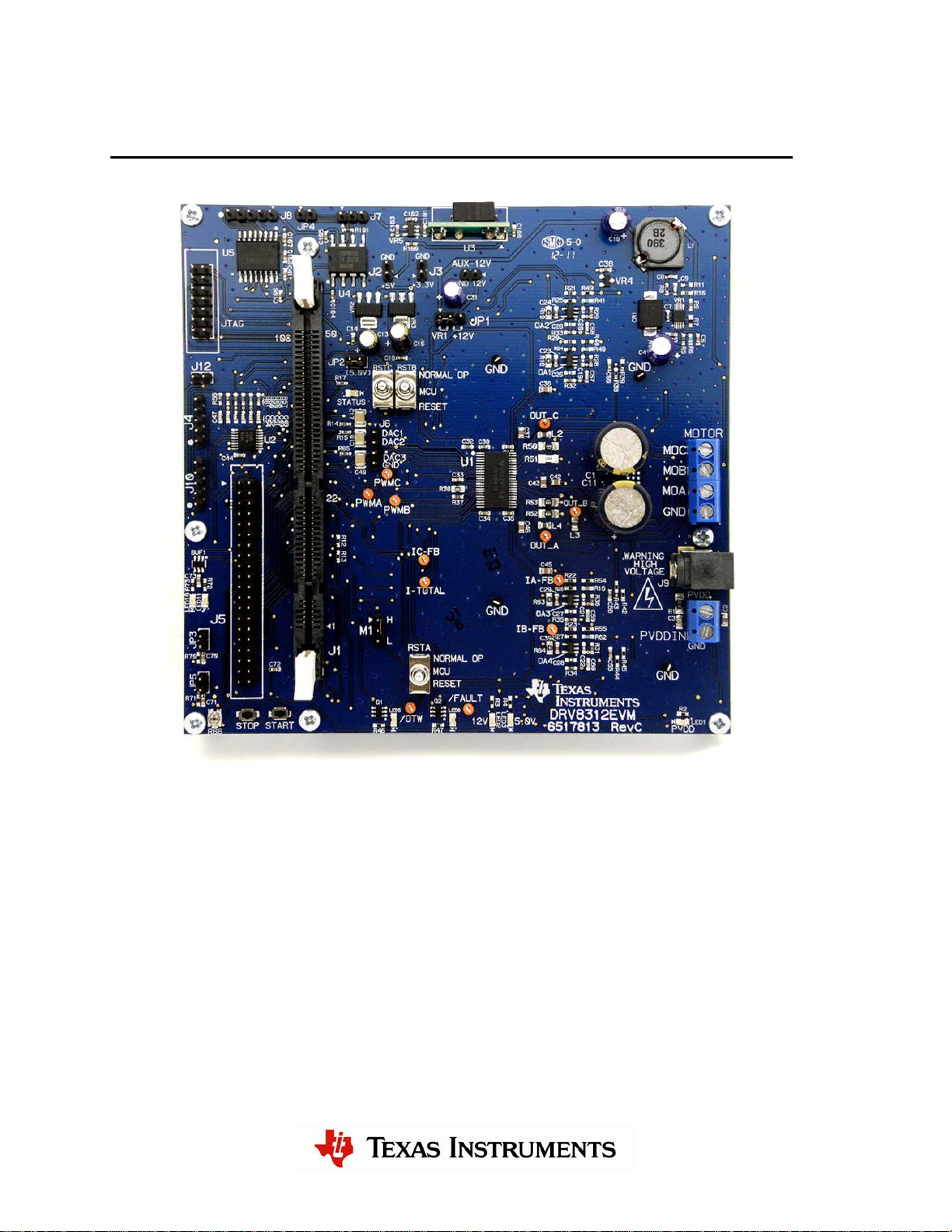

Figure 2. DRV8312 Baseboard
Kit Features
The kit has the following features
• Three-Phase Power Stage, DRV8312 capable of driving three-phase brushless DC motors
and Permanent Magnet Synchronous Motors
• 52.5 V DC max input voltage
• 6.5 A peak with a 3.5 A max continuous output current per phase
• Up to 500 khz driver switching frequency
• 24 V switching power supply with on-board regulation for powering other analog and
digital circuitry
• Isolated CAN and SPI communication (controlCARD support-dependent)
• Closed-loop digital control with feedback using the Stellaris microcontroller’s on-chip
PWM and ADC peripherals
