1
®

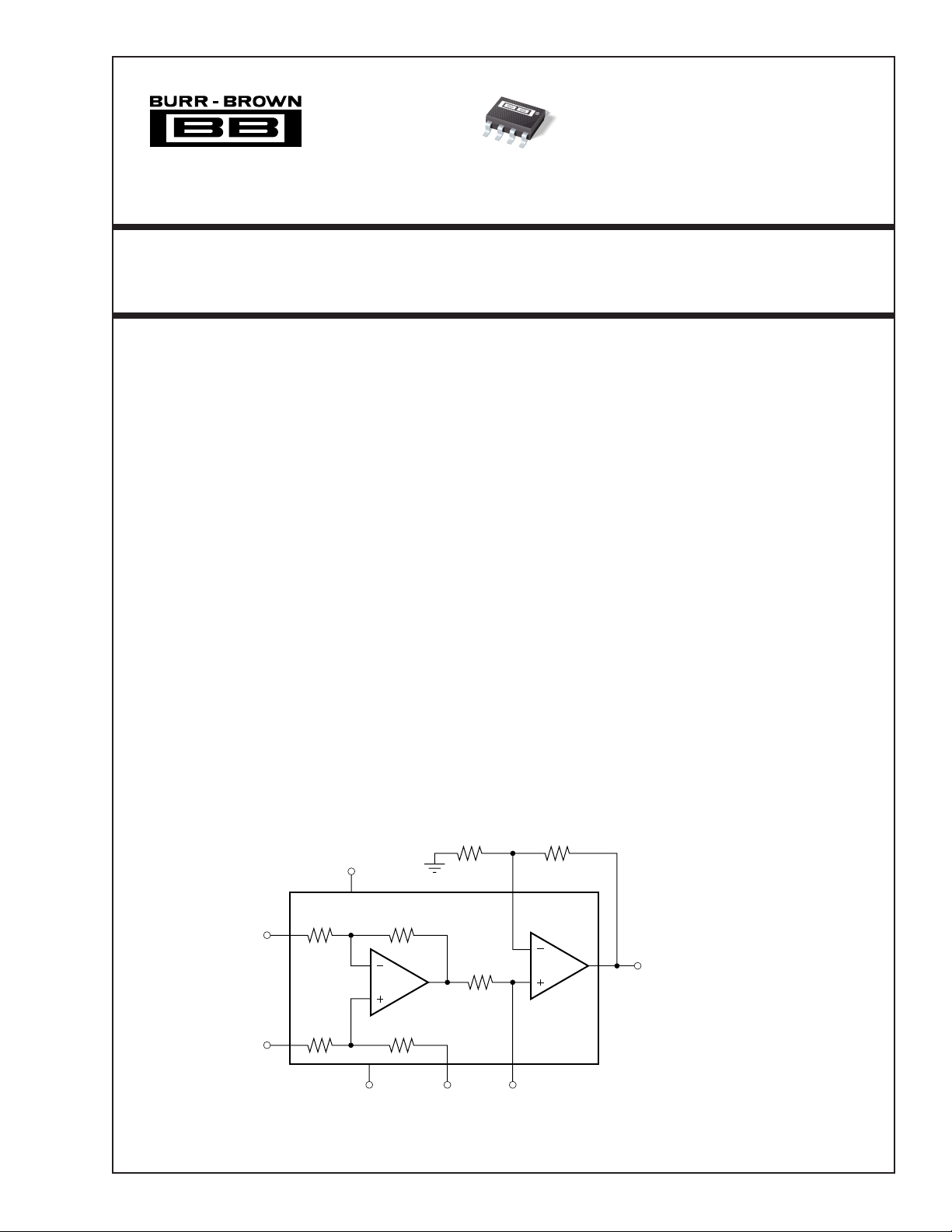

INA145
®
INA145
©1999 Burr-Brown Corporation PDS-1567B Printed in U.S.A. March, 2000
Programmable Gain
DIFFERENCE AMPLIFIER
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111
Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
For most current data sheet and other product
information, visit www.burr-brown.com
DESCRIPTION
The INA145 is a precision, unity-gain difference
amplifier consisting of a precision op amp and on-
chip precision resistor network. Two external resistors
set the gain from 1V/V to 1000V/V. The input com-
mon-mode voltage range extends beyond the positive
and negative rails.
On-chip precision resistors are laser-trimmed to achieve
accurate gain and high common-mode rejection. Ex-
cellent TCR tracking of these resistors assures contin-
ued high precision over temperature.
The INA145 is available in the SO-8 surface-mount
package specified for the extended industrial tempera-
ture range, –40°C to +85°C.
FEATURES
● DIFFERENTIAL GAIN = 1V/V TO 1000V/V:
Set with External Resistors
● LOW QUIESCENT CURRENT: 570µA
● WIDE SUPPLY RANGE:
Single Supply: 4.5V to 36V
Dual Supplies: ±2.25V to ±18V
● HIGH COMMON-MODE VOLTAGE:
+8V at V
S
= +5V
±28V at V
S
= ±15V
● LOW GAIN ERROR: 0.01%
● HIGH CMR: 86dB
● SO-8 PACKAGE
APPLICATIONS
● CURRENT SHUNT MEASUREMENTS
● SENSOR AMPLIFIER
●
DIFFERENTIAL LINE RECEIVER
● BATTERY POWERED SYSTEMS
INA145
R
5
10kΩ
(1%)
A1
V
IN
INA145
V
O
R
2
40kΩ
R
1
40kΩ
V
IN
R
3
40kΩ
R
4
40kΩ
R
G1
R
G
R
G2
A2
V
01
RefV–
V+
G = 1
+
–
2
5
7
418
6
3
V
O
= (V
IN
– V
IN
)(1 + R
G2
/R
G1
)
+–
SBOS120
