© 2007 Microchip Technology Inc. DS41317B-page 5
PIC16F526
3.1.2.3 Increment Address
The PC is incremented when this command is
received.

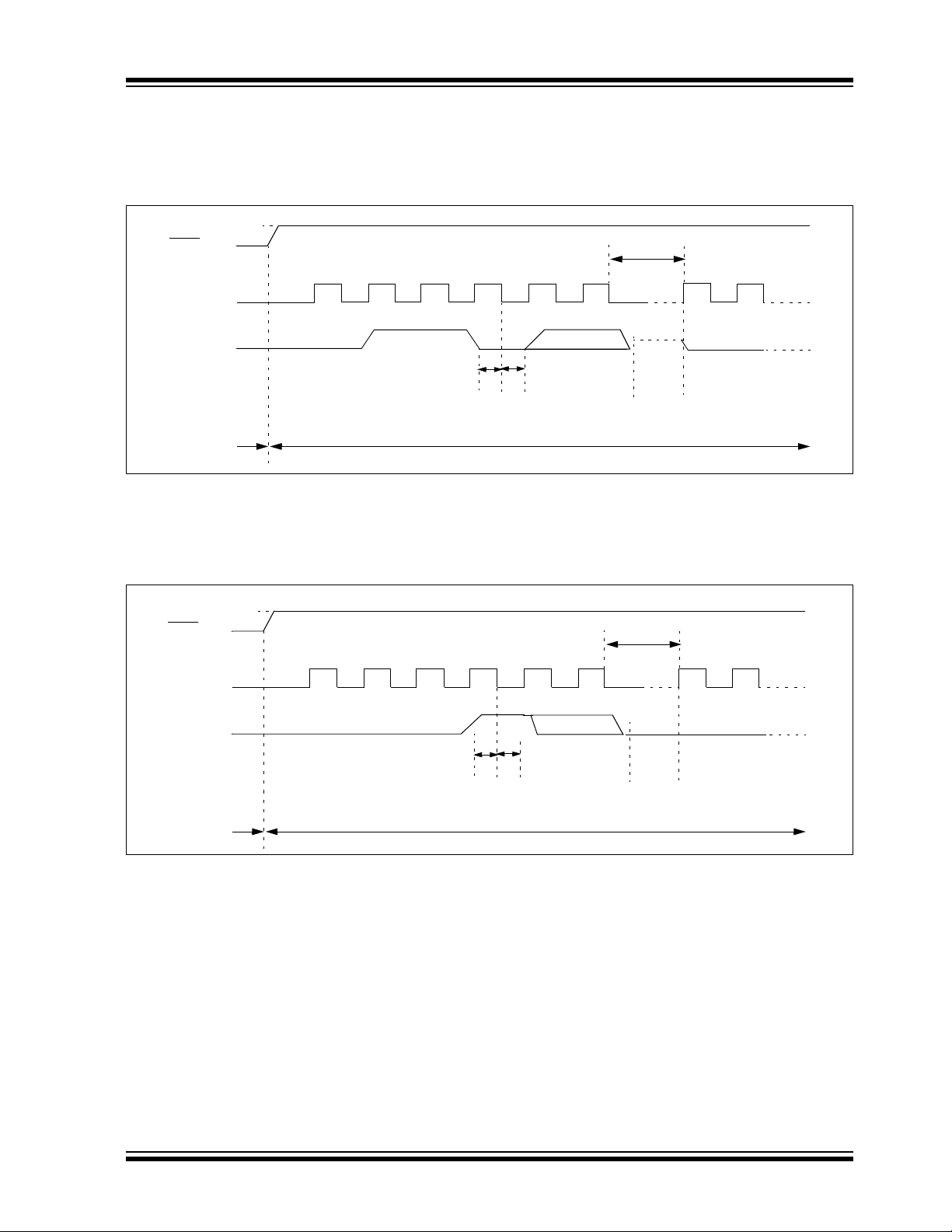

FIGURE 3-4: INCREMENT ADDRESS COMMAND (SERIAL PROGRAM/VERIFY)
3.1.2.4 Begin Programming
A Load command (Load Data) must be given before
every Begin Programming command. Programming of
the appropriate memory (User Program Memory, Flash
Data Memory or Test Program Memory) will begin after
this command is received and decoded.
FIGURE 3-5: BEGIN PROGRAMMING COMMAND
}
}
X
00X
1
1
1
23
45
6
1
2
100 ns
min.
T
SET1THLD1
T
DLY2
1µs min.
Next Command
VIHH
MCLR/VPP
RB1
(ICSPCLK)
(ICSPDAT)
RB0
Reset
}
}
X
10X
0
0
1
23
45
6
1
2
100 ns
min.
T
SET1THLD1
T
PROG
Next Command
VIHH
MCLR/VPP
RB1
(ICSPCLK)
(ICSPDAT)
RB0
Reset
