PIC16F627A/628A/648A
DS41196G-page 6 Preliminary © 2007 Microchip Technology Inc.
The optional 16-bit data word will either be an input to,
or an output from the PIC
®
microcontroller, depending
on the command. Load Data commands will be input,
and Read Data commands will be output. The 16-bit
data word only contains 14 bits of data to conform to the
14-bit program memory word. The 14 bits are centered
within the 16-bit word, padded with a leading and trail-
ing zero.
Program/Verify mode may be entered via one of two
methods. High voltage Program/Verify is entered by
holding CLOCK and DATA pins low while raising MCLR
first, then VDD as shown in Figure 2-2. Low voltage
Program/Verify mode is entered by raising V
DD, then
MCLR
and PGM, as shown in Figure 2-3. The PC will
be set to ‘0’ upon entering into Program/Verify mode.
The PC can be changed by the execution of either an
increment PC command, or a Load Configuration
command, which sets the PC to 0x2000.
All other logic is held in the Reset state while in
Program/Verify mode. This means that all I/O are in the
Reset state (high-impedance inputs).
If LVP is not being used for programming and the LVP
Configuration bit is set (i.e., LVP feature is enabled),
the PGM pin must not be allowed to toggle while
programming. The PGM pin is edge sensitive and if an
edge is detected during programming, it may cause the
PC to reset. If the LVP feature is disabled, the PGM pin
will have no effect on programming.

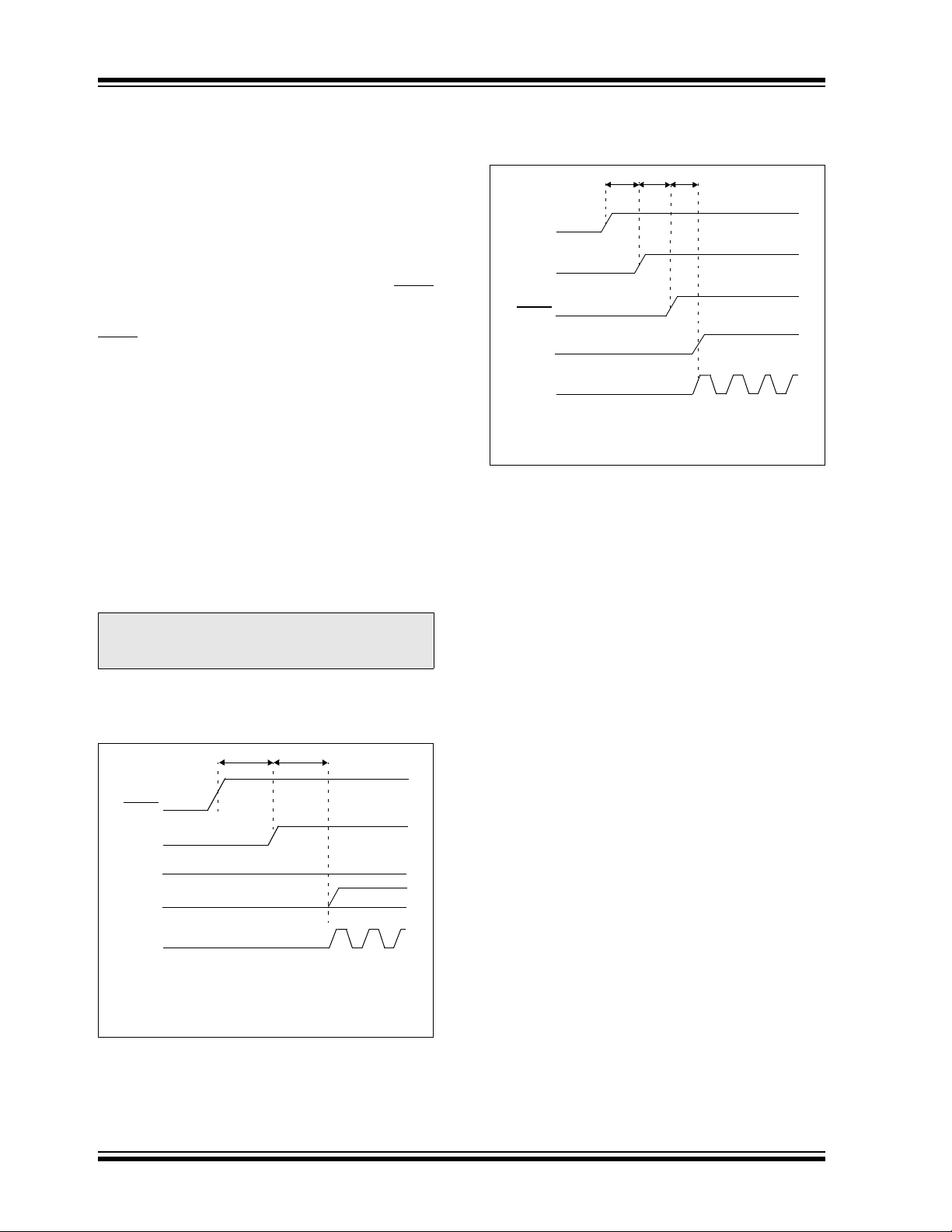

FIGURE 2-2: ENTERING HIGH
VOLTAGE PROGRAM/
VERIFY MODE
FIGURE 2-3: ENTERING LOW
VOLTAGE PROGRAM/
VERIFY MODE
Note: The LVP feature is enabled by default
when the LVP bit of the Configuration
Word is set.
MCLR
VDD
DATA
CLOCK
Tppdp Thld0
LVP
Note: If the LVP fuse is enabled, PGM should be
held low to prevent inadvertent entry into LVP
mode.
VDD
PGM
DATA
CLOCK
Tppdp
MCLR
TlvppThld0
Note: If the device is in LVP mode, raising V
PP to
V
IHH will override LVP mode.
