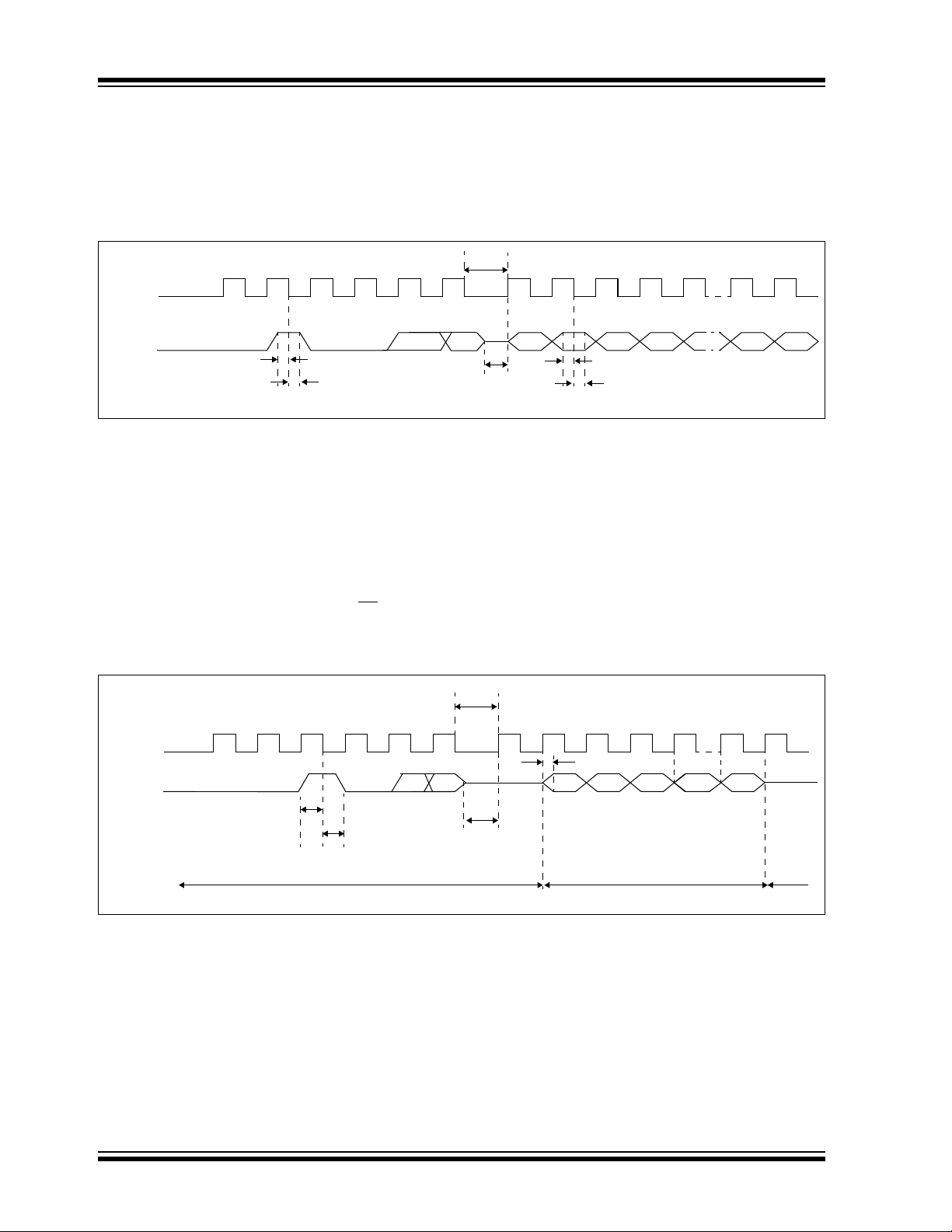

DS40245B-page 6 Preliminary 2003 Microchip Technology Inc.
2.3.3.2 LOAD DATA FOR PROGRAM
MEMORY
After receiving this command, the chip will load in a
14-bit “data word” when 16 cycles are applied, as
shown in Figure 2-4.
FIGURE 2-4: LOAD DATA FOR PROGRAM MEMORY COMMAND
2.3.3.3 READ DATA FROM PROGRAM
MEMORY
After receiving this command, the chip will transmit
data bits out of the program memory (user or
configuration) currently addressed, starting with the
second rising edge of the clock input. The data pin will
go into Output mode on the second rising clock edge,
and it will revert to Input mode (hi-impedance) after the
16th rising edge.
If the program memory is code protected (CP
= 0), the
data is read as zeros.
FIGURE 2-5: READ DATA FROM PROGRAM MEMORY COMMAND
TSET1
-+
T
DLY1
T
SET1
T
HLD1
T
DLY2
12 3 4 56
0
1
0
0
X
X
12 3 4 5 15
16
strt_bit
stp_bit
LSb MSb
ICSPCLK
ICSPDAT
T
HLD1
TDLY1
T
SET1
T
HLD1
T
DLY2
12 3 4 56
1
0
1
0
X
X
12 3 4 5 15
16
TDLY3
input
output
input
strt_bit
stp_bit
LSb
MSb
0
ICSPCLK
ICSPDAT
