STD13N60M2 产品封装文件 - ST Microelectronics（意法半导体）
制造商:
ST Microelectronics（意法半导体）
分类:
MOS管
封装:
TO-252-3
描述:
N 通道 MDmesh™ M2 系列，STMicroelectronicsMDmesh M2 系列功率 MOSFET 非常适合用于谐振型电源（LLC 转换器）。 其配置具有低栅极电荷，以及极佳的输出电容。### MOSFET 晶体管，STMicroelectronics
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
导航目录
STD13N60M2数据手册
Page:
of 23 Go
若手册格式错乱，请下载阅览PDF原文件
1
3
TAB
2
3
DPAK
TAB
1
D
2
PAK
2
D(2, TAB)
G(1)
S(3)
NG1D2TS3Z

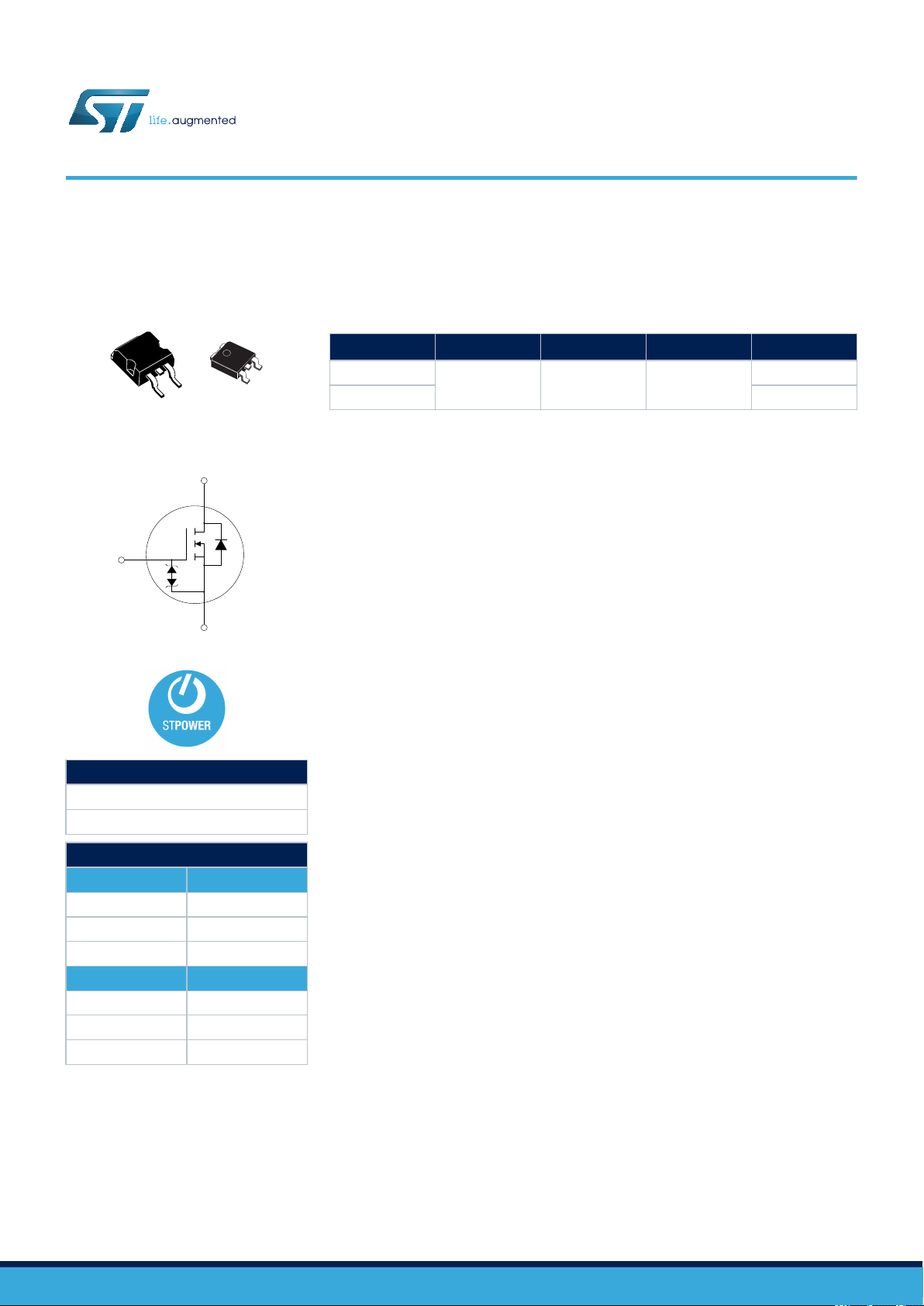

Features
Order code
V
DS
@T
JMAX.
R
DS(on)
max. I
D
Package
STB13N60M2
650 V 0.38 Ω 11 A
D²PAK
STD13N60M2 DPAK
• Extremely low gate charge
• Excellent output capacitance (C
OSS
) profile
• 100% avalanche tested
• Zener-protected
Applications
• Switching applications
Description
These devices are N-channel Power MOSFETs developed using the MDmesh™ M2
technology. Thanks to their strip layout and improved vertical structure, these devices
exhibit low on-resistance and optimized switching characteristics, rendering them
suitable for the most demanding high-efficiency converters.
Product status link
STB13N60M2
STD13N60M2
Product summary
Order code STB13N60M2
Marking 13N60M2
Package D²PAK
Packing Tape and reel
Order code STD13N60M2
Marking 13N60M2
Package DPAK
Packing Tape and reel
N-channel 600 V, 0.35 Ω typ., 11 A MDmesh™ M2 Power MOSFETs in D²PAK
and DPAK packages
STB13N60M2, STD13N60M2
Datasheet
DS9632 - Rev 5 - February 2019
For further information contact your local STMicroelectronics sales office.
www.st.com
