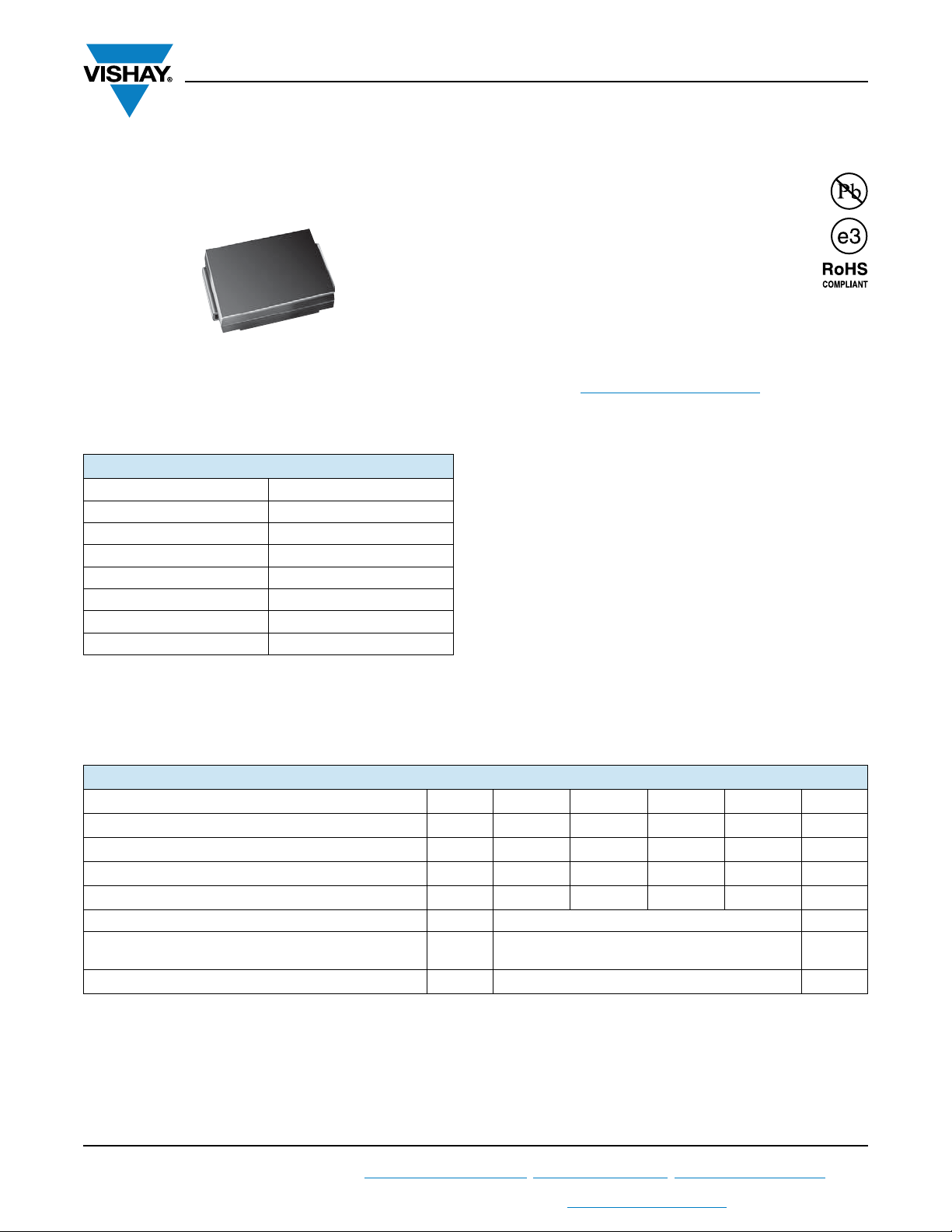

ES3A, ES3B, ES3C, ES3D
www.vishay.com
Vishay General Semiconductor
Revision: 19-Feb-15
1
Document Number: 88589
For technical questions within your region: DiodesAmericas@vishay.com
, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
Surface Mount Ultrafast Plastic Rectifier
FEATURES
• Glass passivated pallet chip junction
• Ideal for automated placement
• Ultrafast recovery times for high efficiency
• Low forward voltage, low power losses
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, and telecommunication.
MECHANICAL DATA
Case: DO-214AB (SMC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity: Color band denotes cathode end
PRIMARY CHARACTERISTICS
I
F(AV)
3.0 A
V
RRM
50 V, 100 V, 150 V, 200 V
I
FSM
100 A
t
rr
20 ns
V
F
0.90 V
T
J
max. 150 °C
Package DO-214AB (SMC)
Diode variations Single die
DO-214AB (SMC)
MAXIMUM RATINGS (T
A
= 25 °C unless otherwise noted)
PARAMETER SYMBOL ES3A ES3B ES3C ES3D UNIT
Device marking code EA EB EC ED
Maximum repetitive peak reverse voltage V
RRM
50 100 150 200 V
Maximum RMS voltage V
RMS
35 70 105 140 V
Maximum DC blocking voltage V
DC
50 100 150 200 V
Maximum average forward rectified current at T
L
= 100 °C I
F(AV)
3.0 A
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
I
FSM
100 A
Operating junction and storage temperature range T
J
, T
STG
-55 to +150 °C
