双4 -A高速低侧MOSFET驱动器与启用 Dual 4-A High Speed Low-Side MOSFET Drivers With Enable
Pictures:
3D模型
符号图
焊盘图
引脚图
产品图
页面导航:
引脚图在P3Hot
典型应用电路图在P14P15P16P17P18
原理图在P12
封装尺寸在P23P24P26P27
标记信息在P23P24P25
封装信息在P22P23P24P25P26P27
功能描述在P12
技术参数、封装参数在P4
应用领域在P1P25P34
电气规格在P5
导航目录
UCC27424DGNRG4数据手册
Page:
of 34 Go
若手册格式错乱，请下载阅览PDF原文件
10%
90% 90%
V
IN_H
V
IN_L
t
D3
t
D4
t
R
t
F
0V
5V
0V
OUTx
V
DD
ENBx
+5V
INPUT
16V
OUTPUT
0V
0V
10%
90%
10%
90%
(a)
90%
90%
10%
90%
(b)
INPUT
OUTPUT
10%
t
D1
t
D2
t
F
t
R
t
D1
t
R
t
F
t
D2
UCC27423
,
UCC27424
,
UCC27425
SLUS545E –NOVEMBER 2002–REVISED DECEMBER 2015
www.ti.com
7.6 Dissipation Ratings
POWER RATING (mW) DERATING FACTOR ABOVE
PACKAGE SUFFIX
T
A
= 70°C
(1)
70°C (mW/°C)
(1)
SOIC-8 D 344–655
(2)
6.25–11.9
(2)
PDIP-8 P 500 9
MSOP
(3)
DGN 1370 17.1
(1) 125°C operating junction temperature is used for power rating calculations
(2) The range of values indicates the effect of pc-board. These values are intended to give the system designer an indication of the best
and worst case conditions. In general, the system designer should attempt to use larger traces on the pc-board where possible in order
to spread the heat away form the device more effectively. For information on the PowerPAD™ package, refer to Technical Brief,
PowerPad Thermally Enhanced Package, Texas Instruments (SLMA002) and Application Brief, PowerPad Made Easy, Texas
Instruments (SLMA004).
(3) The PowerPAD™ is not directly connected to any leads of this package. However, it is electrically and thermally connected to the
substrate which is the ground of the device.

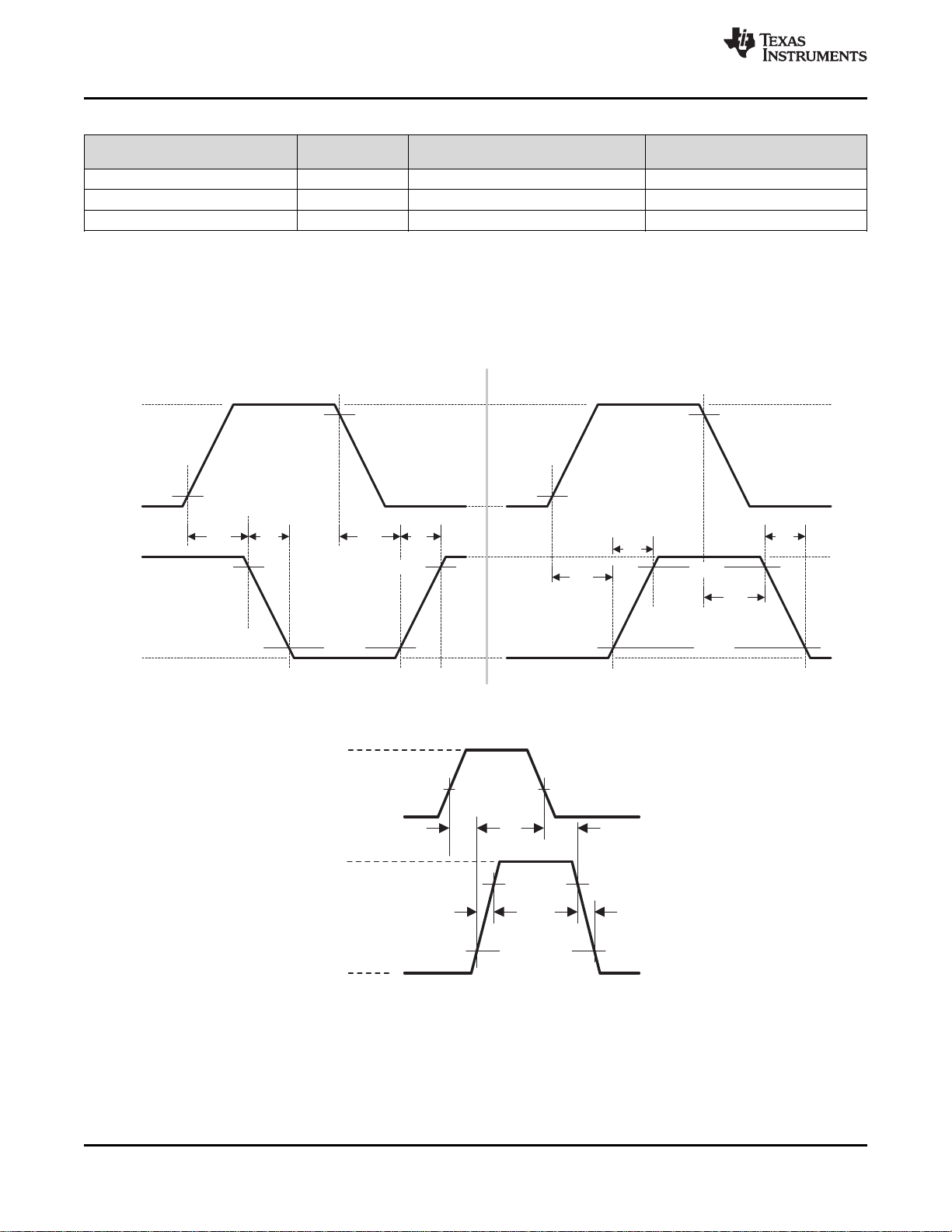

Figure 1. Switching Waveforms for (a) Inverting Driver and (b) Noninverting Driver
NOTE: The 10% and 90% thresholds depict the dynamics of the BiPolar output devices that dominate the power MOSFET
transition through the Miller regions of operation.
Figure 2. Switching Waveform for Enable to Output
6 Submit Documentation Feedback Copyright © 2002–2015, Texas Instruments Incorporated
Product Folder Links: UCC27423 UCC27424 UCC27425
