Page <1> V1.030/05/14

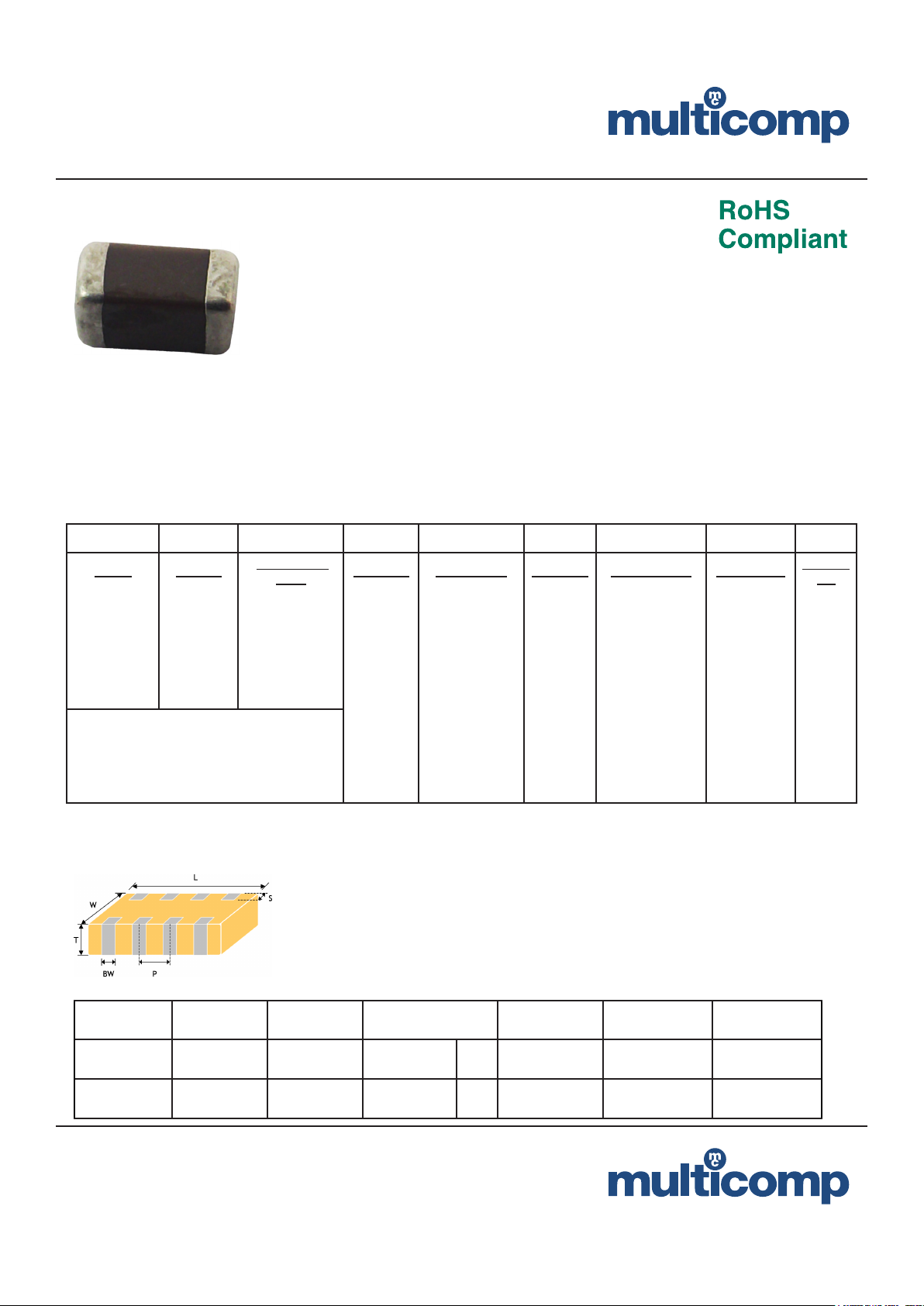

Multilayer SMD Ceramic Capacitor Arrays
4 x 0402, 4 x 0603 Size, NP0, X7R & Y5V Dielectrics, 10V to 100V (MCY4C Series)
Description:
WTC middle and high voltage series MLCC is designed by a special internal electrode
pattern, which can reduce voltage concentrations by distributing voltage gradients
throughout the entire capacitor. This special design also affords increased capacitance
values in a given case size and voltage rating.
WTC capacitor arrays are developed to offer designers the opportunity to lower place-
ment costs increase assembly line output through lower component count per board.
Features:
• High density mounting due to mounting space saving
• Mounting cost saving.
• Increased throughput.
Applications:
• For use as a bypass for digital and analog signal line noise
• Computer motherboards and peripherals.
• The other common electronic circuits.
How To Order:
Size/ Inch (mm) : 4x0402=0508 (1220), 4x0603=0612 (1632)
External Dimensions:
The outline of MLCC
MCY 4C 3 B 103 K 500 C T
Series Cap. Nr.
Termination
Pitch
Dielectric Capacitance Tolerance Rated voltage Termination
Packag-
ing
Multicomp
Y=Capacitor
array
4C=4xCap
3=0.03” pitch*
2=0.02” pitch*
N=NP0
(C0G)
B=X7R
F=Y5V
Two signicant
digits followed
by no. of
zeros. And R
is in place of
decimal point.
eg.:
103=10x10
3
=10,000pF
=10nF
J=
±
5%
K=
±
10%
M=
±
20%
Z=-
20/+80%
Two signicant
digits followed
by no. of zeros.
And R is in
place of deci-
mal point.
eg.:
100=10V DC
160=16V DC
250=25V DC
500=50V DC
101=100V DC
C=Cu/Ni/Sn
T=7”
reeled
Y4C3: 4x0603 (0612) Y4C2: 4x0402
(0508)
Size
Inch (mm)
L (mm) W (mm) T (mm)/Symbol S (mm) BW (mm) P (mm)
4x0402
0508 (1220)
2
±
0.15 1.25
±
0.15 0.85
±
0.1 T 0.2
±
0.1 0.25
±
0.1 0.5
±
0.1
4x0603
0612 (1632)
3.2
±
0.15 1.6
±
0.15 0.8
±
0.1 B 0.3
±
0.2 0.4
±
0.15 0.8
±
0.15
