1

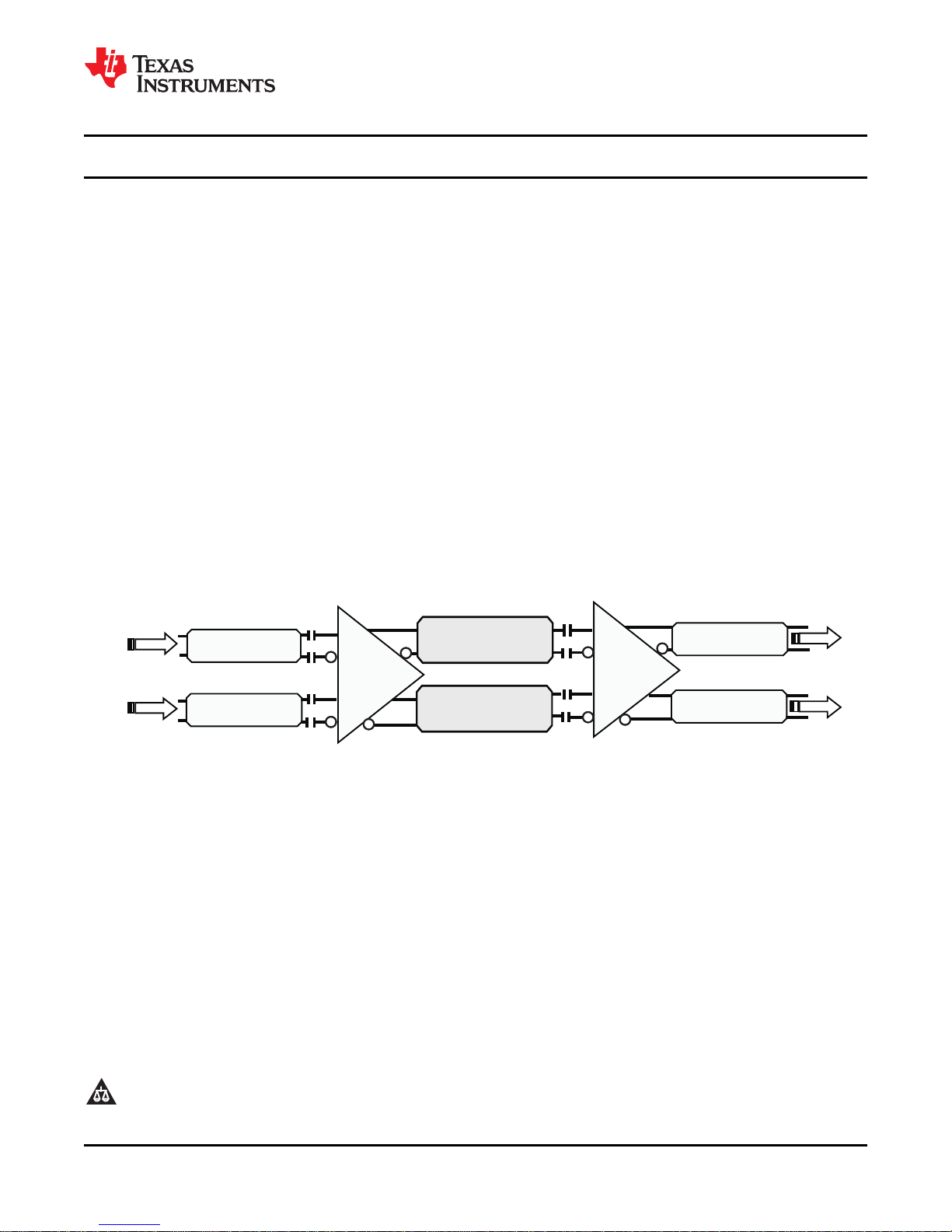

FEATURES
APPLICATIONS
Upto11.3Gbps
DifferentialInputSignal
TLK1102E
AC -
Coupling
TLK1102E
AC -
Coupling
Upto20-meter100 W
CableorEquivalent
BackplaneLink
100 W Differential
PCBInterconnect
Upto20-meter100 W
CableorEquivalent
BackplaneLink
100 Differential
PCBInterconnect
100W Differential
PCBInterconnect
100W Differential
PCBInterconnect
W
DESCRIPTION
TLK1102E
www.ti.com
................................................................................................................................................................................................... SLLS958 – MARCH 2009
11.3-Gbps Dual-Channel Cable and PC Board Equalizer
• Surface Mount Small Footprint 4-mm × 4-mm
24-Pin QFN Package
23
• Dual-Channel Multi-Rate Operation up to
11.3Gbps • Single 3.3V Supply
• Two-Wire Serial Interface (with 8 Selectable • -40 ° C to 100 ° C Operation (Lead Temperature)
Device Addresses) or Device Pin Control
• Compensates for up to 30dB Loss on the
• High-Speed Links In Communication and Data
Receive Side and up to 7dB Loss on the
Systems
Transmit Side at 5.65GHz
• Backplane, Daughtercard, and Cable
• Adjustable Input Equalization Level
Interconnects for 10GE, 8GFC, 10GFC, 10G
• Adjustable Output De-Emphasis: 0 - 7dB
SONET, SAS, SATA, and InfiniBand
• Adjustable Input Bandwidth: 4.5 - 11GHz
• QSFP, SFP+, XFP, SAS, SATA, and InfiniBand
• Adjustable CML Output Swing: 225 -
Active Cable Assemblies
1200mV
p-p
• Loss of Signal (LOS) Detection
• Output Disable with Selectable Auto-Squelch
Function
• Output Polarity Switch
• Excellent High Frequency Input and Output
Return Loss
The TLK1102E is a versatile and flexible high-speed dual-channel equalizer for applications in digital high-speed
links with data rates up to 11.3Gbps.
The TLK1102E can be configured in many ways through its two-wire serial interface, available through the SDA
and the SCL pins, to optimize its performance. The configurable parameters include the output de-emphasis
settable from 0 to 7dB, the output differential voltage swing settable from 225 to 1200mV
p-p
, the input
equalization level settable for 0 to 20 meters of 24-AWG twinaxial cable, 0 to 40 inches of FR-4 PCB
interconnect, or equivalent interconnect (see Table 1 ), the input filter bandwidth settable from 4.5 to 11GHz, and
the LOS (loss of signal) assert voltage level.
1
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
2 Spectra-Strip, SKEWCLEAR, XCede are registered trademarks of Amphenol Corporation.
3 SI is a trademark of Park Electrochemical Corporation.
PRODUCTION DATA information is current as of publication date.
Copyright © 2009, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
