MC56F8006/MC56F8002 Digital Signal Controller, Rev. 4
Block Diagram
Freescale Semiconductor4
2 Block Diagram

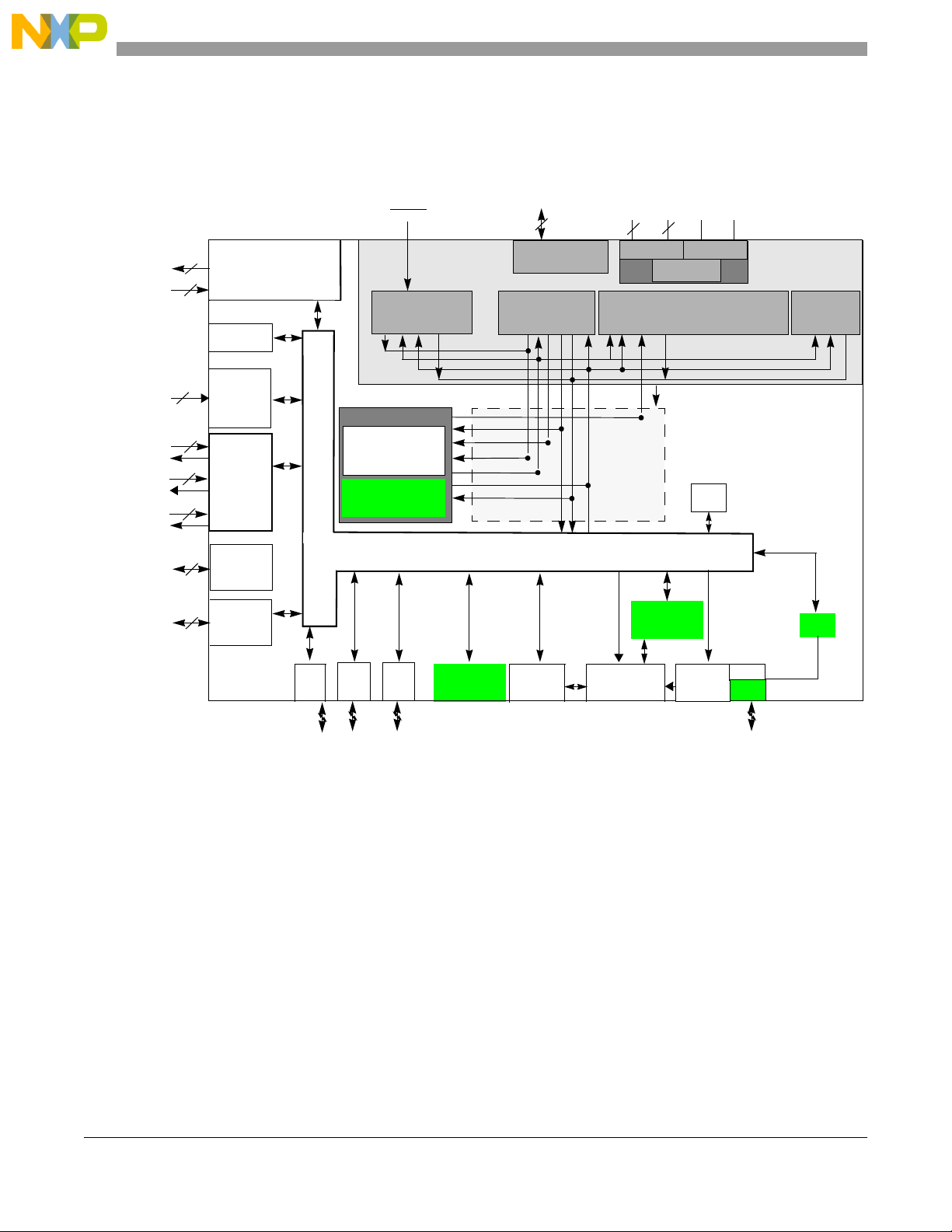

Figure 1 shows a top-level block diagram of the MC56F8006/MC56F8002 digital signal controller. Package options for this
family are described later in this document. Italics indicate a 56F8002 device parameter.
Figure 1. MC56F8006/MC56F8002 Block Diagram
3 Overview
3.1 56F8006/56F8002 Features
3.1.1 Core
• Efficient 16-bit 56800E family digital signal controller (DSC) engine with dual Harvard architecture
• As many as 32 million instructions per second (MIPS) at 32 MHz core frequency
• 155 basic instructions in conjunction with up to 20 address modes
• Single-cycle 16 16-bit parallel multiplier-accumulator (MAC)
• Four 36-bit accumulators, including extension bits
• 32-bit arithmetic and logic multi-bit shifter
Program Controller
and Hardware
Looping Unit
Data ALU 16 x 16 + 36 36-Bit MAC
Three 16-bit Input Registers
Four 36-bit Accumulators
Address
Generation Unit
Bit
Manipulation
Unit
16-Bit 56800E Core
Interrupt
Controller
4
Unified Data /
Program RAM
2KB
PDB
CDBR
SPI
IPBus Bridge
R/W Control
Memory
PA B
CDBW
JTAG/EOnCE
Port or GPIOD
Digital Reg
Analog Reg
Low-Voltage
Supervisor
V
DD
V
SS
V
DDA
V
SSA
4
RESET
6
Dual GP Timer
ADCA
4
24 Total
Clock
Generator*
System
Integration
Module
ROSC
PWM Outputs
PWM
COP/
Watchdog
ADCB
Flash Memory
16 Kbytes flash
12 Kbytes flash
PGA/ADC
SCI
2
3
CMP0
2
CMP2
2
CMP
or
GPIOD
CMP1
2
Crystal
Oscillator
Power
Management
Controller
programmable
I
2
C
2
PIT
delay block
3
40
GPIO are
muxed with
all other func
pins.
PMC
3
Fault Inputs
PDB
XAB1
XAB2
System Bus
Control
PAB
CDBR
CDBW
XDB2
OSC
RTC
Note: All pins
are muxed with
other peripheral
pins.
2
